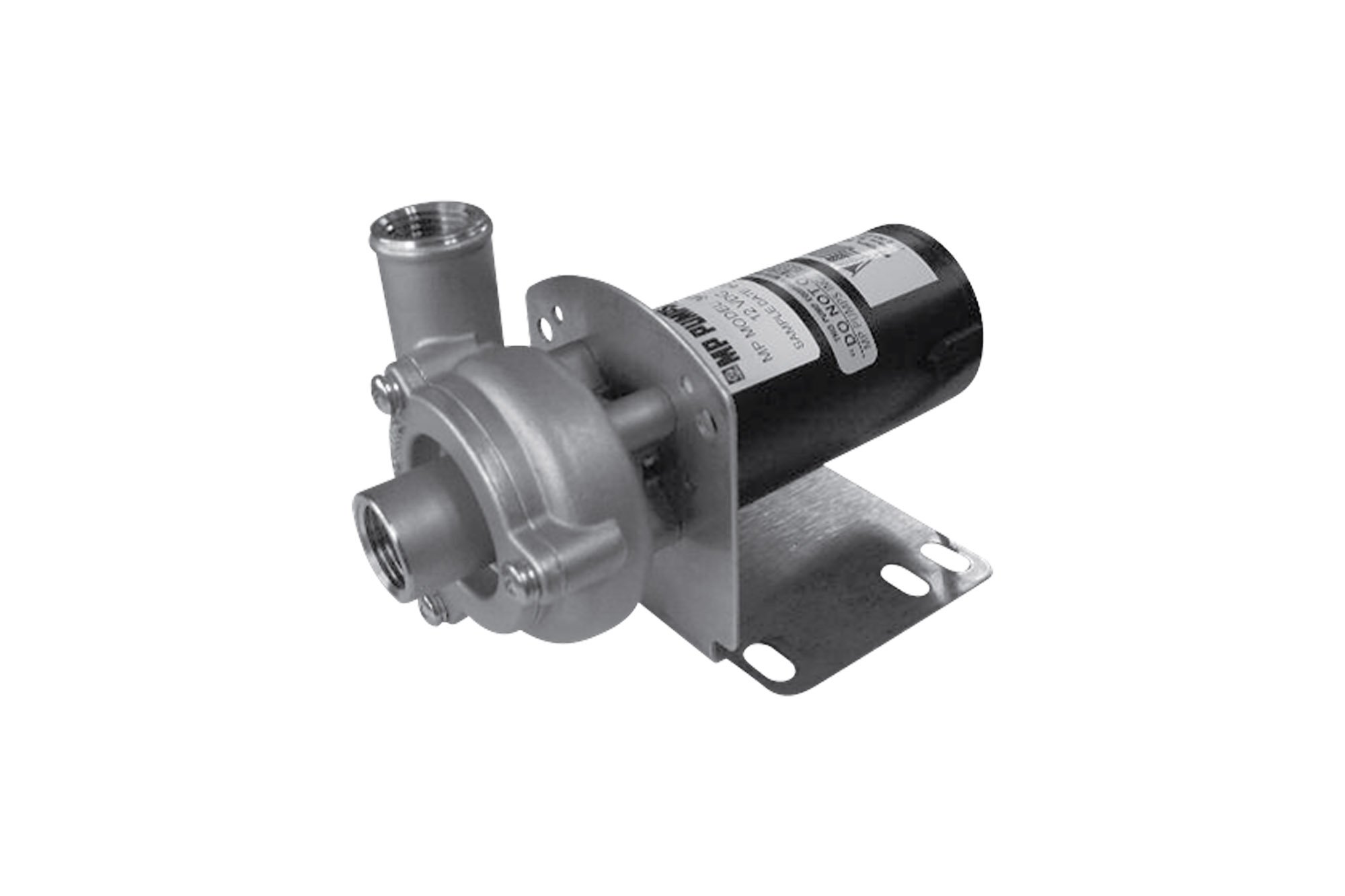

CFX 75 | End Suction Centrifugal Circulator Pump and Motor Unit | MP38331
CFX 75 | End Suction Centrifugal Circulator Pump and Motor Unit | MP38331
Art. No.: mp_mp38331
Art. No.: mp_mp38331
Key Features:
- Construction: All 316 stainless steel for exceptional chemical and corrosion resistance
- Port Size: 3/4" NPT (inlet and outlet)
- Motor: 1/6 HP, 115/230V, Single Phase, TEFC
- Maximum Flow: 28 GPM
- Maximum Head: 32 ft
- Seal Type: Carbon/Ceramic/Viton bellows shaft seal
- Mounting Flexibility: Rotatable in 90° increments
Lead times temporarily extended to 20 weeks.
$709.13
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.The MP 38331 is a robust and compact centrifugal circulator pump from the CFX 75 series, designed for demanding applications where durability and corrosion resistance are critical. Built with high-grade 316 stainless steel throughout, this end suction pump is ideal for transferring chemically aggressive fluids across marine, agricultural, industrial, and commercial environments.
This unit features a 3/4 inch NPT inlet and outlet for simple integration into existing piping systems. The pump is directly coupled to a 1/6 HP motor operating at 115/230 volts in a single-phase configuration. The TEFC (Totally Enclosed Fan Cooled) motor provides dependable performance while protecting internal components from dust, moisture, and chemical exposure.
Key performance specs include a maximum flow rate of 28 gallons per minute and a maximum head of 32 feet, making it a versatile solution for various fluid transfer needs. A carbon/ceramic/Viton bellows shaft seal is included as standard, offering additional protection in chemically harsh environments. The pump housing is designed to allow rotation in 90-degree increments for flexible installation. Optional marine ignition-protected motors are also available for specific marine applications.
This unit features a 3/4 inch NPT inlet and outlet for simple integration into existing piping systems. The pump is directly coupled to a 1/6 HP motor operating at 115/230 volts in a single-phase configuration. The TEFC (Totally Enclosed Fan Cooled) motor provides dependable performance while protecting internal components from dust, moisture, and chemical exposure.
Key performance specs include a maximum flow rate of 28 gallons per minute and a maximum head of 32 feet, making it a versatile solution for various fluid transfer needs. A carbon/ceramic/Viton bellows shaft seal is included as standard, offering additional protection in chemically harsh environments. The pump housing is designed to allow rotation in 90-degree increments for flexible installation. Optional marine ignition-protected motors are also available for specific marine applications.
