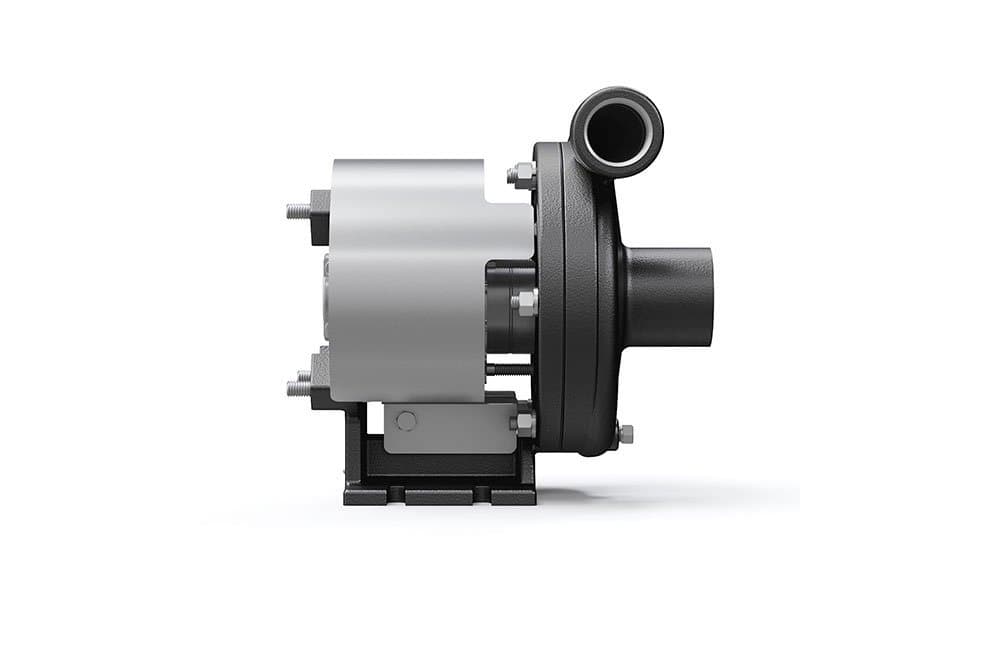

HTO 120 | Hot Oil Centrifugal Pump and Motor Unit | MP38615
SKU: mp38615
SKU: mp38615
Key Specifications:
- Pump Construction: Ductile Iron
- Impeller Diameter: 5.96 inches
- Port Configuration: 2" inlet, 1-1/2" discharge (NPT or 125 lb. flange)
- Motor Power: 3 HP, 230/460V, 3-phase
- Max Flow Rate: 195 GPM
- Max Head: 135 ft
- Cooling System: Air-cooled seal
- Mounting Options: Vertical or horizontal
Lead times temporarily extended to 26 weeks.
$5,208.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 38615 is a high-performance hot oil centrifugal pump from the HTO 120 Series, designed for demanding thermal transfer applications. Engineered with a durable ductile iron pump casing and a 5.96-inch impeller, this unit ensures long-lasting reliability even under high-temperature conditions.
Featuring 2-inch inlet and 1-1/2-inch discharge ports (NPT or 125 lb. flat flange), the pump is directly coupled to a robust 3 HP, 230/460V, three-phase motor. Efficient heat management is achieved through an air-cooled seal design that utilizes ambient airflow to maintain lower operating temperatures, enhancing seal life and overall performance.
Versatility is another strength of the MP 38615—it supports both vertical and horizontal mounting configurations to fit various system layouts. With a maximum flow rate of 195 GPM and a total dynamic head of up to 135 feet, this end-suction pump delivers consistent performance in high-heat environments.
Featuring 2-inch inlet and 1-1/2-inch discharge ports (NPT or 125 lb. flat flange), the pump is directly coupled to a robust 3 HP, 230/460V, three-phase motor. Efficient heat management is achieved through an air-cooled seal design that utilizes ambient airflow to maintain lower operating temperatures, enhancing seal life and overall performance.
Versatility is another strength of the MP 38615—it supports both vertical and horizontal mounting configurations to fit various system layouts. With a maximum flow rate of 195 GPM and a total dynamic head of up to 135 feet, this end-suction pump delivers consistent performance in high-heat environments.
