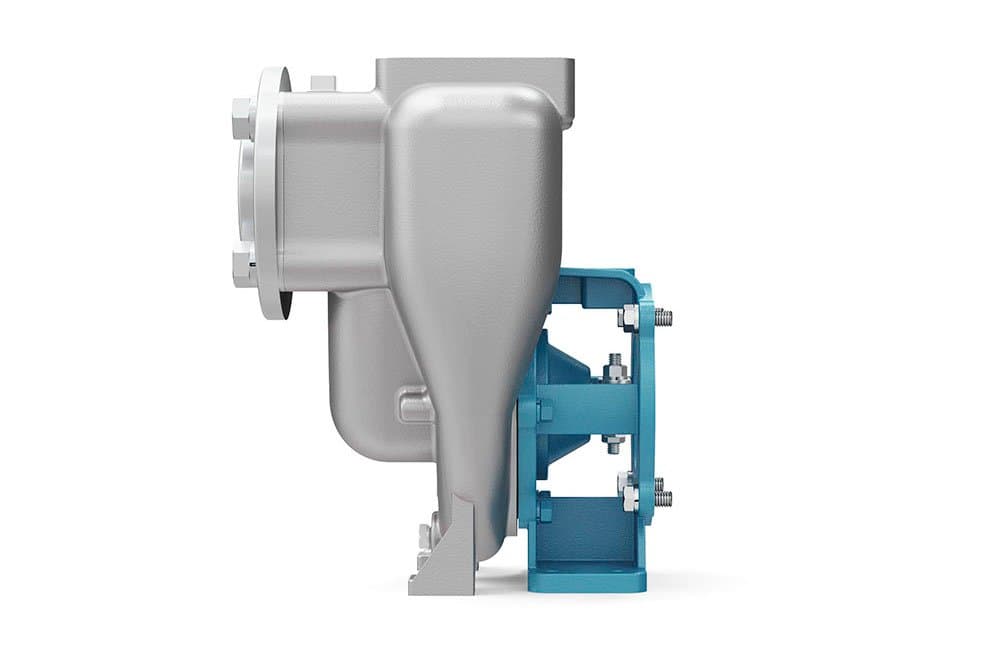

Flomax 8 PumPAK | Self Priming Centrifugal Pump | MP38684
SKU: mp38684
SKU: mp38684
Key Specifications:
- Construction: Corrosion-resistant 316 stainless steel pump body
- Impeller: Dynamically balanced, semi-open 5.0" impeller in 316 SS, High flow 5 bladed
- Seal Type: T-21 single convolution mechanical seal
- Port Size: 2" inlet and 2" outlet
- Maximum Flow Rate: 150 GPM
- Maximum Head: 100 ft
- Max Solid Handling: 0.56"
Lead times temporarily extended to 26 weeks.
$3,784.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 38684 is a premium stainless steel pump end from the FLOMAX 8 series, designed specifically for mounting on compatible motors. Built for durability and performance, this self-priming centrifugal pump end is equipped with a 5.0-inch diameter semi-open impeller and a T-21 mechanical seal with a single convolution, ideal for handling a wide range of industrial, agricultural, and OEM applications.
This pump end-only unit—motor not included—is engineered for flexibility and reliability. It features 2" NPT suction and discharge ports and is compatible with a variety of drive options, including 56C and 145TC frame motors, hydraulic motors, and gas engines. A bearing pedestal is available for T-frame motor or belt-drive configurations.
What sets this model apart is its patent-pending dual seal design with an integrated barrier fluid reservoir mounted directly on the pump body. This design enhances operational reliability and reduces overall system costs.
Standard Features:
Ideal for use in bilge pumping, washdown systems, fire-fighting backup systems, ballast transfer, chemical spraying, fertilizer handling, blending, and bulk liquid transfer in marine, industrial, and agricultural settings.
This pump end-only unit—motor not included—is engineered for flexibility and reliability. It features 2" NPT suction and discharge ports and is compatible with a variety of drive options, including 56C and 145TC frame motors, hydraulic motors, and gas engines. A bearing pedestal is available for T-frame motor or belt-drive configurations.
What sets this model apart is its patent-pending dual seal design with an integrated barrier fluid reservoir mounted directly on the pump body. This design enhances operational reliability and reduces overall system costs.
Standard Features:
- Viton® flapper check valve
- 2" NPT 150# suction flange
- 2" SAE 4-bolt flat face discharge port
- Stainless steel shaft sleeve and fasteners
- Replaceable 316 SS wear plate
- High-flow 5-blade impeller
- Seal options for abrasive and corrosive environments
Ideal for use in bilge pumping, washdown systems, fire-fighting backup systems, ballast transfer, chemical spraying, fertilizer handling, blending, and bulk liquid transfer in marine, industrial, and agricultural settings.
