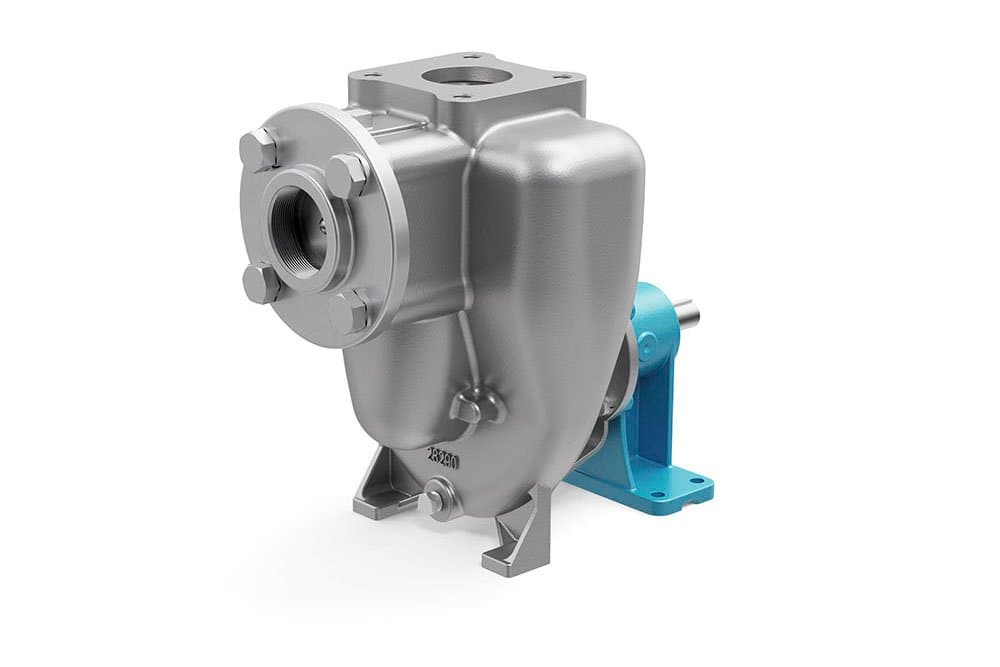

The MP 39106 is a premium stainless steel pump end from the FLOMAX 8 series, designed specifically for mounting on compatible motors. Built for durability and performance, this self-priming centrifugal pump end is equipped with a 5.0-inch diameter semi-open impeller and a T-21 mechanical seal with a single convolution, ideal for handling a wide range of industrial, agricultural, and OEM applications.
This pump end-only unit—motor not included—is engineered for flexibility and reliability. It features 2" NPT suction and discharge ports and is compatible with a variety of drive options, including 56C and 145TC frame motors, hydraulic motors, and gas engines. A bearing pedestal is available for T-frame motor or belt-drive configurations.
What sets this model apart is its patent-pending dual seal design with an integrated barrier fluid reservoir mounted directly on the pump body. This design enhances operational reliability and reduces overall system costs.
Standard Features:
- Viton® flapper check valve
- 2" NPT 150# suction flange
- 2" SAE 4-bolt flat face discharge port
- Stainless steel shaft sleeve and fasteners
- Replaceable 316 SS wear plate
Optional Upgrades:
- High-flow 5-blade impeller
- Seal options for abrasive and corrosive environments
Common Applications:
Ideal for use in bilge pumping, washdown systems, fire-fighting backup systems, ballast transfer, chemical spraying, fertilizer handling, blending, and bulk liquid transfer in marine, industrial, and agricultural settings.
