Flomax 8 | Pedestal Hydraulic Drive Self Priming Centrifugal Pump | MP39124
SKU: mp39124
SKU: mp39124
Key Features:
- Material: 316 Stainless Steel construction for corrosion resistance
- Mounting Style: Pedestal
- Impeller: 5.0" diameter, semi-open, dynamically balanced (optional high-flow 5-blade impeller available)
- Port Sizes: 2" NPT suction (150# flat flange), 2" SAE 4-bolt flat face discharge
- Max Flow Rate: 150 GPM
- Max Head: 100 feet
- Solids Handling: Up to 0.56"
- Components: Includes Viton flapper, renewable wearplate, stainless steel fasteners and drive sleeve
Lead times temporarily extended to 26 weeks.
$5,108.00

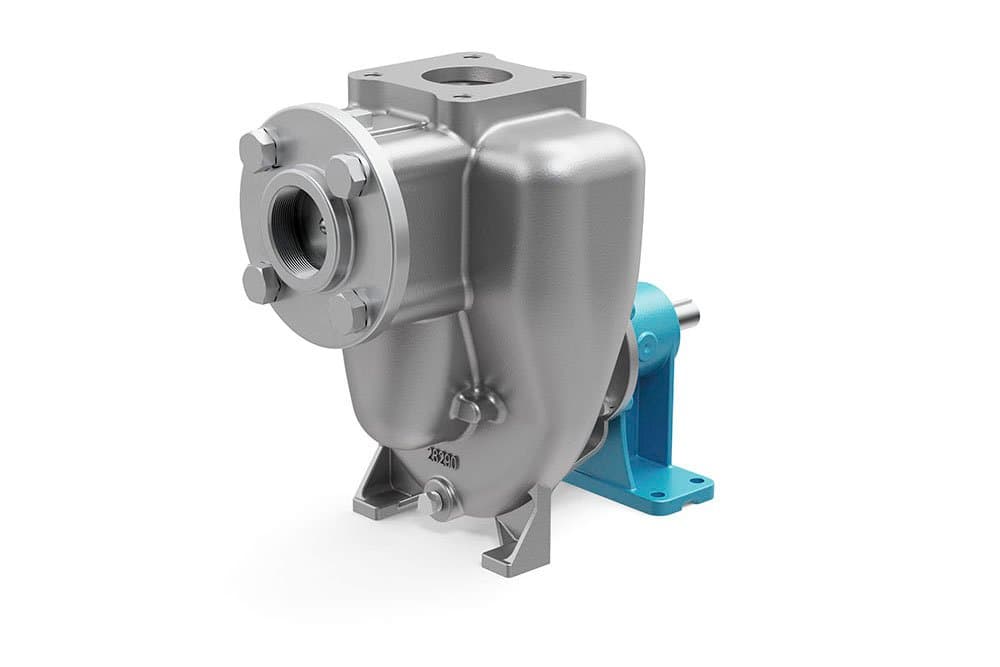

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 39124 is a premium-quality pump end from the FLOMAX 8 Series, constructed from durable 316 stainless steel. This pedestal-mounted, self-priming centrifugal pump end features a 5.0-inch diameter semi-open impeller and 2-inch inlet and outlet ports. Designed for reliability and ease of integration, it is supplied without a motor, making it ideal for coupling with various power sources including hydraulic drives, electric motors (56C and 145TC frame), and gas engines.
Built with a focus on durability and space efficiency, the MP 39124 features a unique double seal system and a barrier fluid accumulator integrated directly into the pump housing. This innovative design enhances pump longevity while reducing overall system costs.
Each FLOMAX 8 pump end is fully assembled and performance-tested to ensure optimal operation. A bearing pedestal option is also available for setups requiring a T-frame motor or belt drive configuration.
Applications:
This pump is a versatile solution for a range of applications across industrial, OEM, agricultural, and marine sectors. Ideal for use as a bilge pump, auxiliary fire pump, ballast transfer pump, washdown system, or in fertilizer and pesticide distribution, sprayers, blending systems, nurse tanks, and bulk fluid transfer.
Built with a focus on durability and space efficiency, the MP 39124 features a unique double seal system and a barrier fluid accumulator integrated directly into the pump housing. This innovative design enhances pump longevity while reducing overall system costs.
Each FLOMAX 8 pump end is fully assembled and performance-tested to ensure optimal operation. A bearing pedestal option is also available for setups requiring a T-frame motor or belt drive configuration.
Applications:
This pump is a versatile solution for a range of applications across industrial, OEM, agricultural, and marine sectors. Ideal for use as a bilge pump, auxiliary fire pump, ballast transfer pump, washdown system, or in fertilizer and pesticide distribution, sprayers, blending systems, nurse tanks, and bulk fluid transfer.
Here you can download all important information. A PDF reader is required to view the sheets.
