FMX 100 | Self Priming Centrifugal Pump and Motor Unit | MP39529
FMX 100 | Self Priming Centrifugal Pump and Motor Unit | MP39529
Art. No.: mp_mp39529
Art. No.: mp_mp39529
Key Specifications:
Pump Material: 316 Stainless Steel
Impeller Diameter: 3.95 inches
Port Size: 1" NPT Inlet and Outlet
Motor: 3/4 HP, 115/230V, Single Phase
Max Flow Rate: 55 GPM
Max Head: 60 feet
Suction Lift: Up to 17 feet (at 3450 RPM)
Seal Type: Type 6A (Carbon/Ceramic/Viton)
Lead times temporarily extended to 16 weeks.
$1,577.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

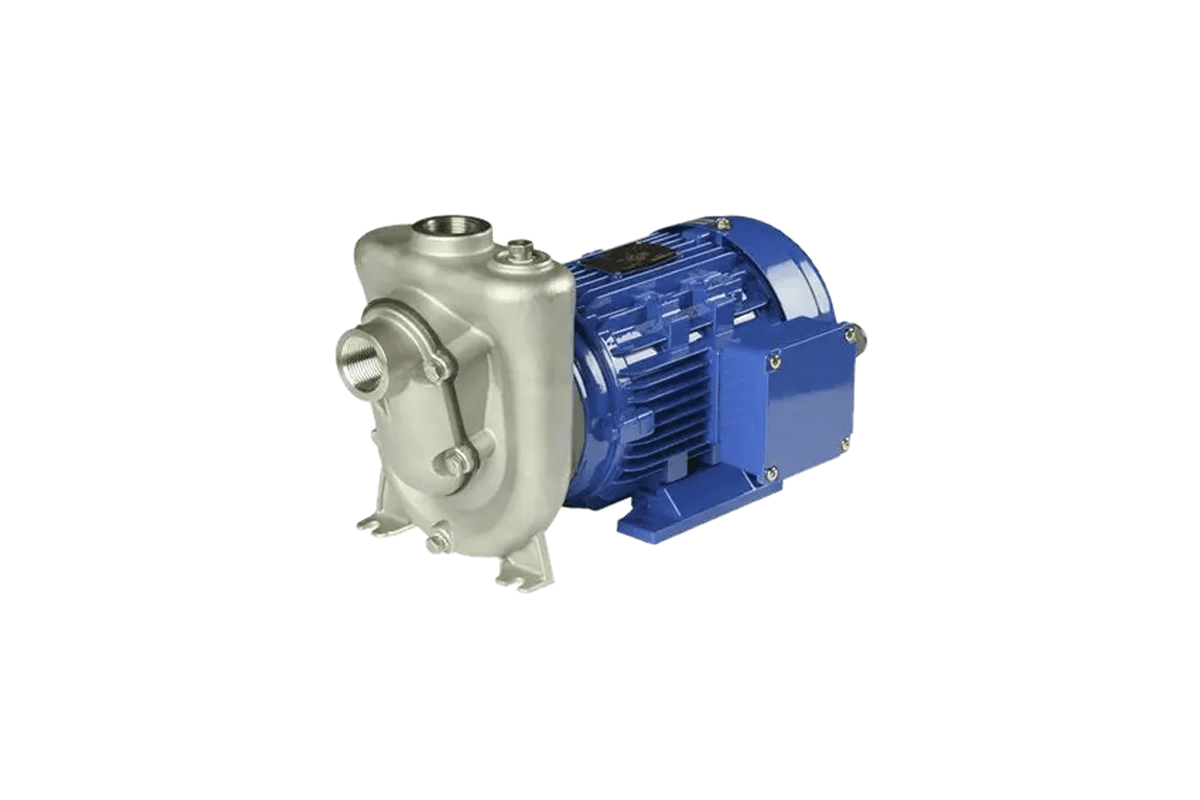

The MP 39529 is a high-performance self-priming centrifugal pump designed for demanding industrial and commercial applications. This unit features a durable 316 stainless steel pump body for enhanced corrosion resistance and compatibility with a wide range of fluids. It's equipped with a 3.95-inch diameter impeller and 1" NPT inlet and outlet ports, ensuring efficient fluid transfer.
Powered by a reliable 3/4 HP single-phase motor (115/230V), the pump delivers a maximum flow rate of over 55 gallons per minute and can achieve a total head of up to 60 feet. It’s capable of a suction lift of up to 17 feet at 3450 RPM, making it ideal for applications requiring strong self-priming capabilities.
A standard Type 6A mechanical seal—carbon/ceramic/Viton—ensures leak-resistant operation and longevity in harsh environments. The FMX100 series pump is widely used across industries including construction, agriculture, petroleum handling, marine systems (including HVAC), and various industrial processes involving brine, calcium chloride, diesel exhaust fluid, biocides, and liquid fertilizers.
