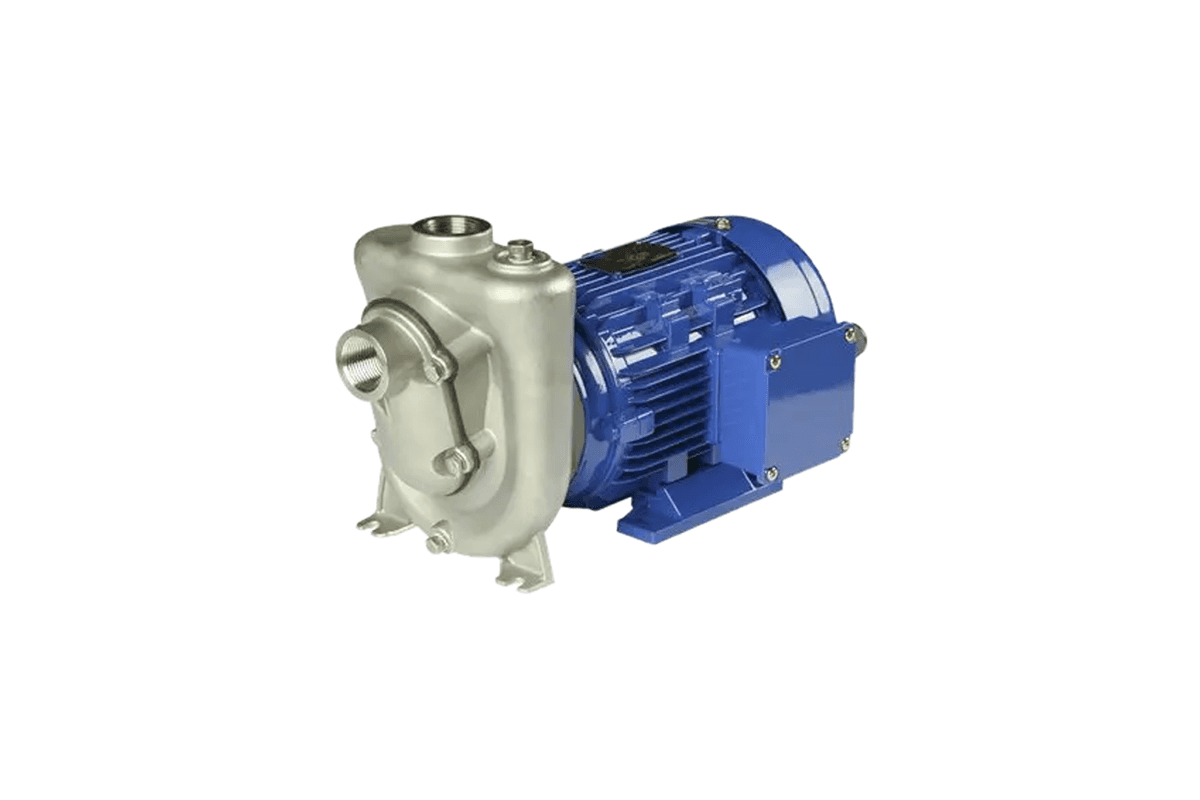

FMX 100 | Self Priming Centrifugal Pump and Motor Unit | MP39786
SKU: mp39786
SKU: mp39786
Key Specifications:
- Pump Material: 316 Stainless Steel
- Impeller Diameter: 3.95 inches
- Port Size: 1" NPT Inlet and Outlet
- Motor: 1 HP, 115/230V, Single Phase
- Max Flow Rate: 55 GPM
- Max Head: 60 feet
- Suction Lift: Up to 17 feet at 3450 RPM
Lead times temporarily extended to 26 weeks.
$1,880.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.Engineered for durability and performance, the MP 39786 is a high-efficiency self-priming centrifugal pump from the FMX 100 series, built to handle demanding industrial and commercial applications. Constructed from 316 stainless steel, this pump offers exceptional corrosion resistance and is suitable for use with a wide range of liquids.
At its core is a 3.95-inch diameter impeller, paired with 1" NPT inlet and outlet ports for seamless fluid transfer. The pump is directly coupled with a powerful 1 HP motor, operating on 115/230V in a single-phase configuration. Designed for reliable performance, it includes a robust mechanical seal made from carbon, ceramic, and Viton (Type 6A) to ensure long service life and resistance to harsh chemicals.
Capable of delivering flow rates of up to 55 gallons per minute and a maximum head of nearly 60 feet, this unit is also capable of a suction lift of up to 17 feet when running at 3450 RPM. Ideal For Applications In:
At its core is a 3.95-inch diameter impeller, paired with 1" NPT inlet and outlet ports for seamless fluid transfer. The pump is directly coupled with a powerful 1 HP motor, operating on 115/230V in a single-phase configuration. Designed for reliable performance, it includes a robust mechanical seal made from carbon, ceramic, and Viton (Type 6A) to ensure long service life and resistance to harsh chemicals.
Capable of delivering flow rates of up to 55 gallons per minute and a maximum head of nearly 60 feet, this unit is also capable of a suction lift of up to 17 feet when running at 3450 RPM. Ideal For Applications In:
- Construction sites
- Fuel and petroleum transfer
- Diesel exhaust fluid (DEF) systems
- Marine and marine HVAC systems
- Agriculture (biocides, liquid fertilizers)
- Industrial processes involving brine or calcium chloride
