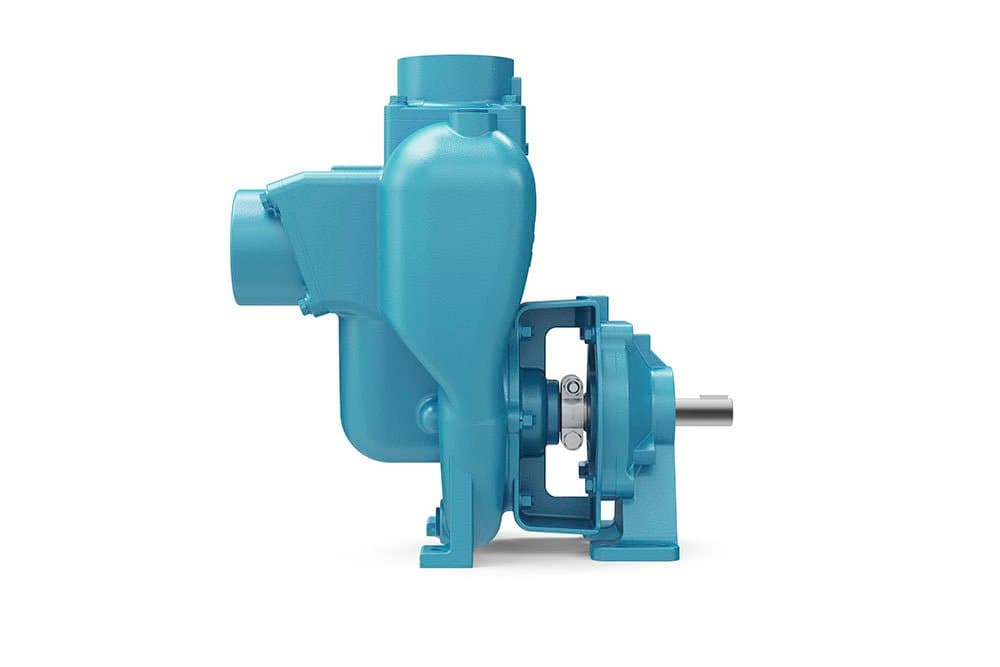

The MP 50620 is a high-performance, self-priming centrifugal pump end from the Flomax 15 series, engineered for demanding industrial and commercial applications. This bare shaft pump is constructed with robust 316 stainless steel, offering superior resistance to corrosive and caustic fluids, making it ideal for tough environments.
Equipped with a 5-blade, 6-inch diameter impeller, this unit delivers powerful and efficient fluid movement, with a maximum flow rate of up to 320 GPM and a head height reaching 145 feet. The pump features 3-inch NPT ANSI 150 lb. flat flanged suction, paired with a Viton flapper for added sealing reliability. The discharge side includes a 3-inch ANSI 4-bolt flange, with an optional 3-inch NPT discharge flange kit (Part No. 38647) available for added flexibility.
This pump end is designed for easy integration with various power sources such as hydraulic motors, 184TC/215C frame electric motors, and gasoline engines. A bearing pedestal is also available for T-frame or belt drive configurations.
Key components include a renewable wear plate, stainless steel fasteners and drive sleeve, and a semi-open dynamically balanced impeller, ensuring durability and smooth operation. The advanced seal design is grease-lubricated, enabling dry-run operation for extended runtime and improved seal longevity.
Typical Applications:
- Industrial fluid transfer
- Agricultural spraying and fertilization
- Marine bilge and ballast operations
- OEM equipment integration
- Firefighting support systems
- Washdown and bulk transfer
Designed for versatility, durability, and ease of maintenance, the MP 50620 Flomax 15 pump end is an ideal solution for a wide range of fluid-handling tasks.
