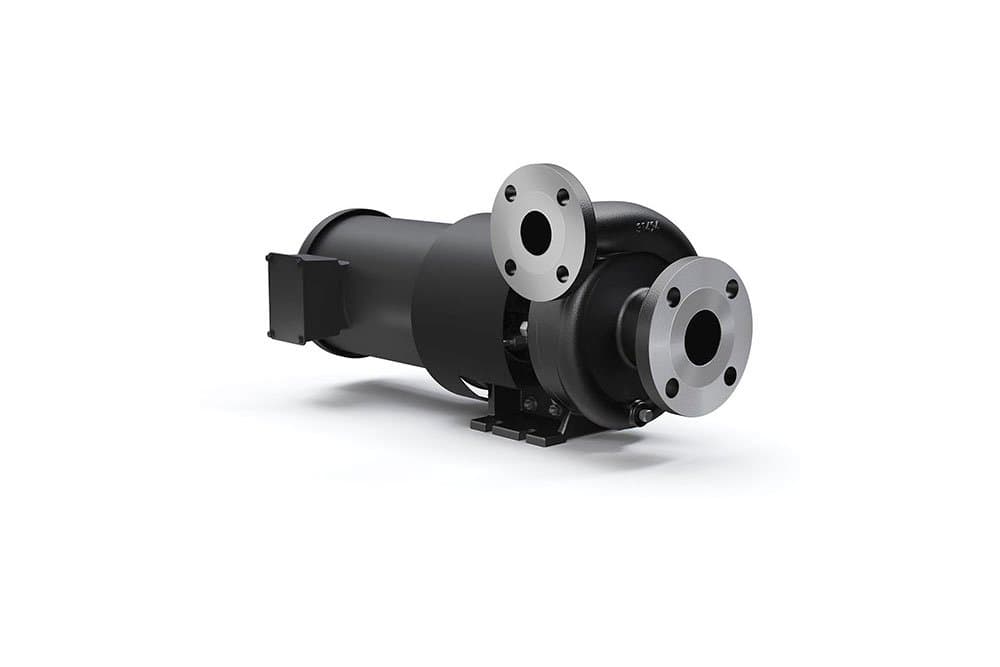

HTW 80 | Centrifugal Hot Water Pump and Motor Unit | MP50918
SKU: mp50918
SKU: mp50918
Key Specifications:
- Pump Material: Ductile Iron
- Impeller Diameter: 5.25 inches
- Seal Type: T/2 Double Convolution Mechanical Seal
- Port Sizes: 1-1/2" Inlet, 1-1/4" NPT Discharge
- Motor Power: 2 HP, 230/460V, Three Phase
- Max Flow Rate: 80 GPM
- Max Head: 127 feet
- Discharge Orientation: Horizontal or Vertical (optional)
- Ideal for: High-temperature water and glycol-based fluid systems
Lead times temporarily extended to 26 weeks.
$5,983.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.Engineered for demanding industrial and OEM applications, the MP 50918 is a high-performance centrifugal pump designed to handle hot water and glycol-based fluids under extreme temperature conditions. Built from durable ductile iron, this HTW 80 series pump features a 5.25-inch impeller and a T/2 double convolution mechanical seal for reliable, long-term operation.
Close-coupled to a robust 2 HP, three-phase motor (230/460V), the MP 50918 offers a compact yet powerful solution. Its 1-1/2" inlet and 1-1/4" NPT outlet ensure efficient fluid transfer with a maximum flow rate of 80 GPM and a head of up to 127 feet.
What sets this unit apart is its advanced isolator technology and integrated cooling system, including a cooling loop and fan clamp. These features help maintain the seal chamber at a stable 170°F (77°C), even when the process temperature reaches up to 400°F (204°C). This controlled thermal environment significantly extends the seal's lifespan, reducing downtime and maintenance costs.
Reliable, rugged, and ready for high-temperature duty, the MP 50918 pump is an essential choice for operations where performance and durability are non-negotiable.
