Seal Type T-21 Mechanical Seal with single convolution
Ports: Standard 3" NPT Suction and Discharge
Max Flow Rate: Up to 400 GPM
Max Head: 125 feet
Solids Handling: Up to 1.25 inches in diameter
Drive Sleeve: 304 Stainless Steel
Mounting: For motor coupling (motor not included)
Lead times temporarily extended to 16 weeks.
$3,524.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

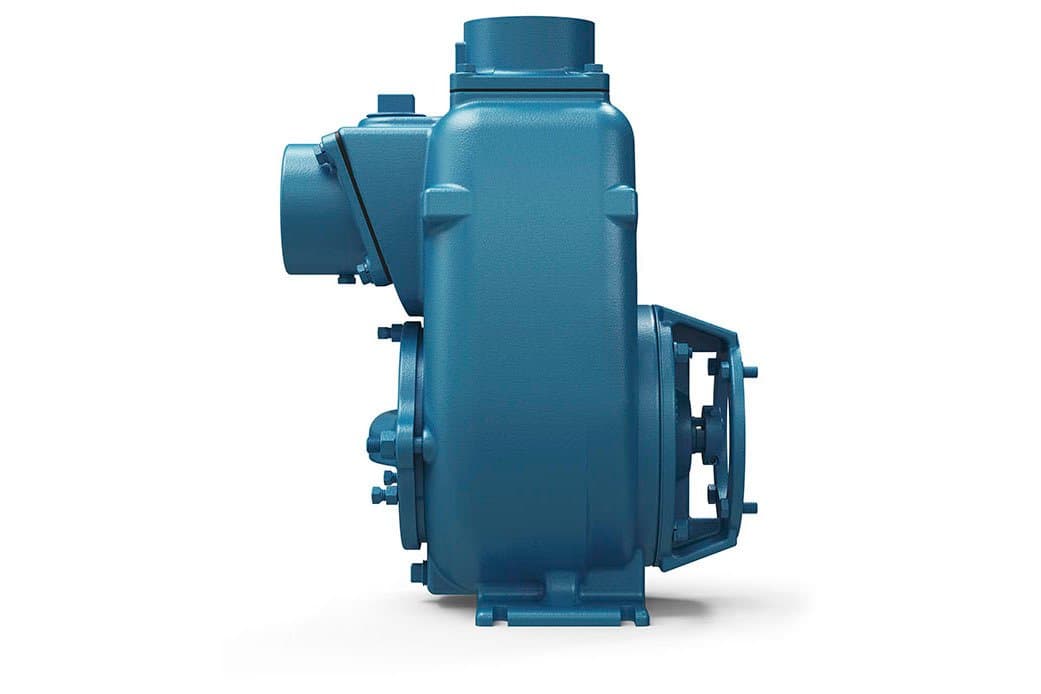

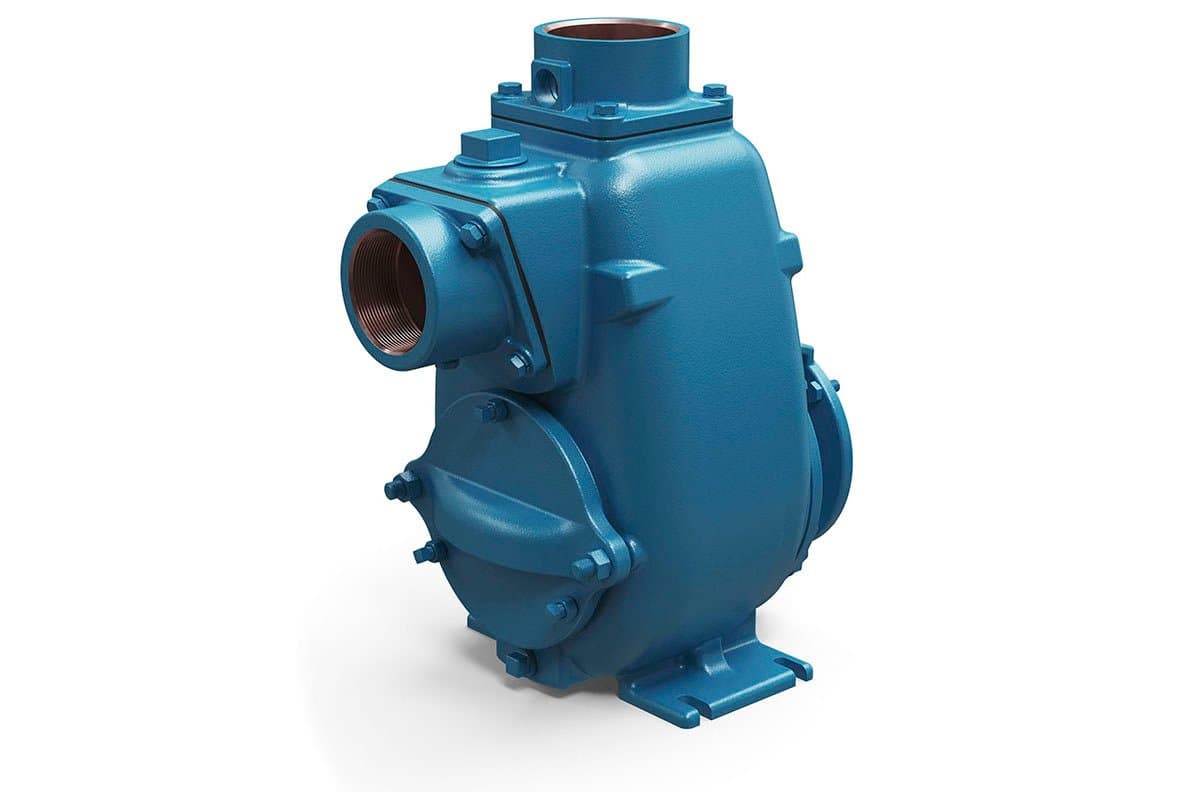

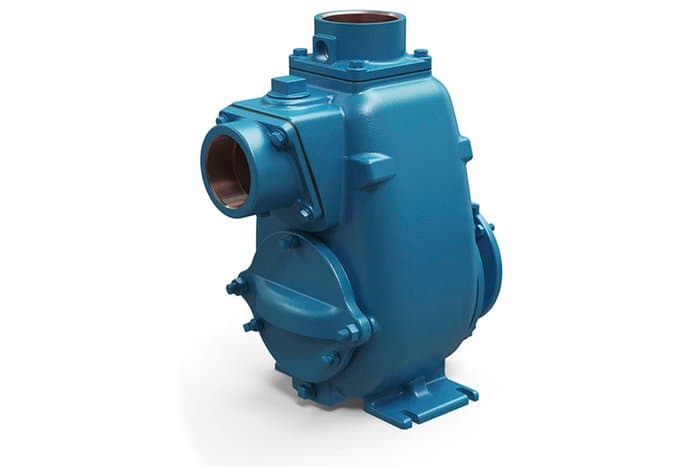

The MP 33601 is a robust pump end from the 2CT-3 series, engineered for high-performance applications requiring reliable self-priming and solids-handling capabilities. Constructed from durable cast iron, this pump head is designed to be mounted on a compatible motor (motor not included). It features a 5.88-inch diameter impeller, a 1.125-inch shaft, and standard 3" x 3" NPT suction and discharge ports.
Built for demanding commercial, industrial, and OEM use, the MP 33601 delivers powerful suction capable of lifting liquids from depths of up to 20 feet. It requires priming only at initial startup. Its back pull-out design and accessible front cleanout make maintenance simple and efficient. The pump is equipped with a T-21 single-convolution mechanical seal and a 304 stainless steel drive sleeve that helps protect the driver shaft.
Designed to handle solids up to 1.25 inches, this trash pump ensures reliable operation even in challenging environments.
Recommended Applications:
Perfect for a range of commercial and industrial systems, including OEM installations. For optimal results, install the pump as close as possible to the fluid source. Secure to a solid base or mounting plate. Use either pipe or reinforced non-collapsible hose on the suction side. Ensure that the suction line is not reduced in size, and that discharge piping is rated to match the pump’s output pressure.
