Seal Type: T-21 single convolution mechanical seal
Port Size: 2" NPT suction and discharge ports
Max Flow Rate: Up to 150 GPM
Max Head: 100 feet
Solids Handling: Capable of passing solids up to 0.56 inches
Lead times temporarily extended to 16 weeks.
$4,059.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

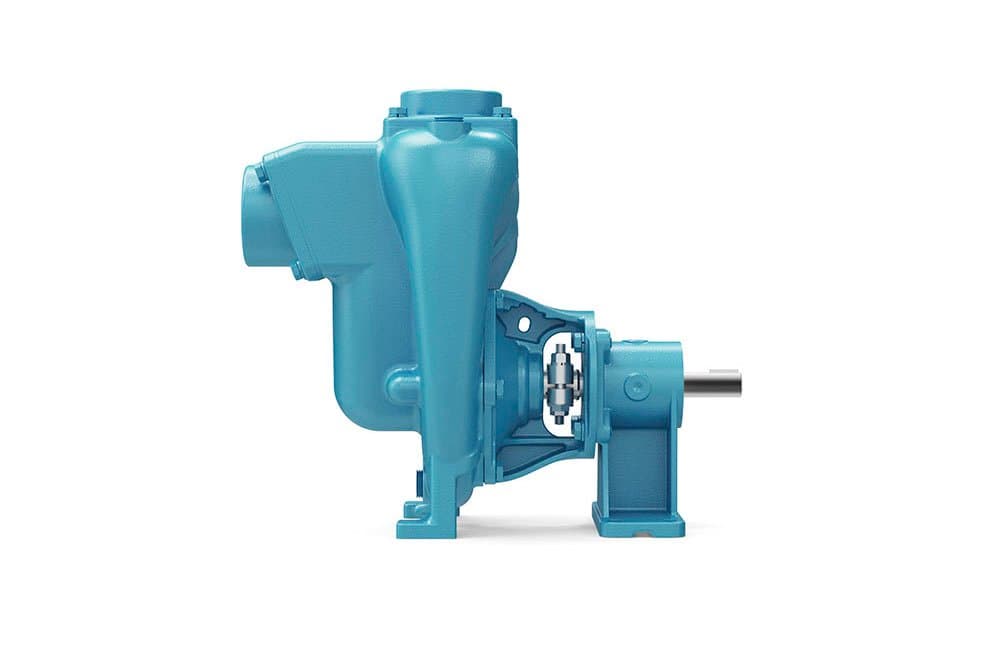

The MP 33595 is a high-performance pump end from the FLOMAX 8 series, crafted from durable bronze and designed for seamless mounting on compatible motors. It features a 5-inch stainless steel semi-open impeller that is dynamically balanced for smooth operation. This pump end is supplied without a motor and is intended as a replacement or upgrade for existing pump systems.
Engineered for reliability, this self-priming centrifugal pump is capable of maintaining a full suction line with the help of an internal flapper valve once initially primed. It can achieve suction lifts of up to 25 feet, making it ideal for challenging fluid transfer applications.
Built to endure demanding conditions, the MP 33595 includes stainless steel fasteners and a corrosion-resistant stainless steel drive shaft. It is suitable for a wide range of uses across industrial, OEM, agricultural, and marine environments.
The pump end arrives fully assembled and tested, ready to be paired with hydraulic motors, 56C and 145TC frame motors, or gas engines. A bearing pedestal is also available for T-frame motor or belt-driven setups.
Applications:
This versatile pump is commonly used in various applications including bilge pumping, ballast transfer, washdown operations, auxiliary firefighting, pesticide and fertilizer spraying, blending, and bulk liquid transfers.
