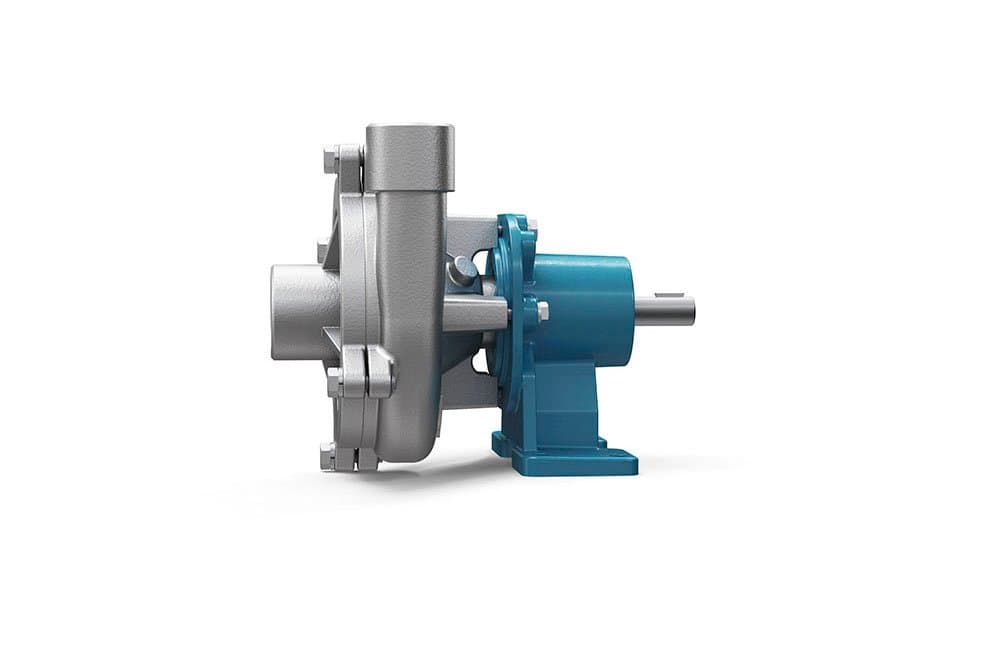

CFX 100 | End Suction Centrifugal Circulator Pump and Motor unit | MP34932
SKU: mp34932
SKU: mp34932
Key Specifications:
- Pump Material: 316 Stainless Steel
- Impeller Diameter: 3.75 inches
- Port Size: 1” NPT (Inlet and Outlet)
- Motor: 1/2 HP, 115/230V, Single Phase, TEFC
- Max Flow Rate: 40 GPM
- Max Head: 54 ft
- Seal Type: Carbon/Ceramic/Viton Bellows (other options available)
- Pump Orientation: 90° rotatable
Lead times temporarily extended to 20 weeks.
$1,832.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 34932 is a high-performance centrifugal circulator designed for demanding environments across marine, industrial, commercial, and agricultural sectors. This compact unit integrates a CFX 100 series stainless steel end suction pump with a robust TEFC (Totally Enclosed Fan Cooled) electric motor, offering durability and efficiency in one streamlined system.
This model features a precision-engineered 3.75-inch impeller and 1" NPT inlet and outlet ports, providing consistent performance with a flow capacity of up to 40 GPM and a maximum head of 54 feet. The pump is directly coupled to a 1/2 HP, single-phase motor that supports dual voltage operation (115/230V), ensuring versatile integration into a range of systems.
Constructed from 316 investment cast stainless steel, all wetted components offer exceptional resistance to corrosion, making it suitable for handling aggressive fluids. A standard carbon/ceramic/Viton bellows shaft seal enhances the system’s reliability, with optional seal materials available to suit specific chemical compatibility requirements.
The CFX 100 pump design allows for flexible installation, with rotation options adjustable in 90-degree increments to accommodate various piping layouts.
Typical Applications:
Marine systems, industrial fluid transfer, commercial process applications, and agricultural operations requiring corrosion-resistant and reliable pumping solutions.
This model features a precision-engineered 3.75-inch impeller and 1" NPT inlet and outlet ports, providing consistent performance with a flow capacity of up to 40 GPM and a maximum head of 54 feet. The pump is directly coupled to a 1/2 HP, single-phase motor that supports dual voltage operation (115/230V), ensuring versatile integration into a range of systems.
Constructed from 316 investment cast stainless steel, all wetted components offer exceptional resistance to corrosion, making it suitable for handling aggressive fluids. A standard carbon/ceramic/Viton bellows shaft seal enhances the system’s reliability, with optional seal materials available to suit specific chemical compatibility requirements.
The CFX 100 pump design allows for flexible installation, with rotation options adjustable in 90-degree increments to accommodate various piping layouts.
Typical Applications:
Marine systems, industrial fluid transfer, commercial process applications, and agricultural operations requiring corrosion-resistant and reliable pumping solutions.
